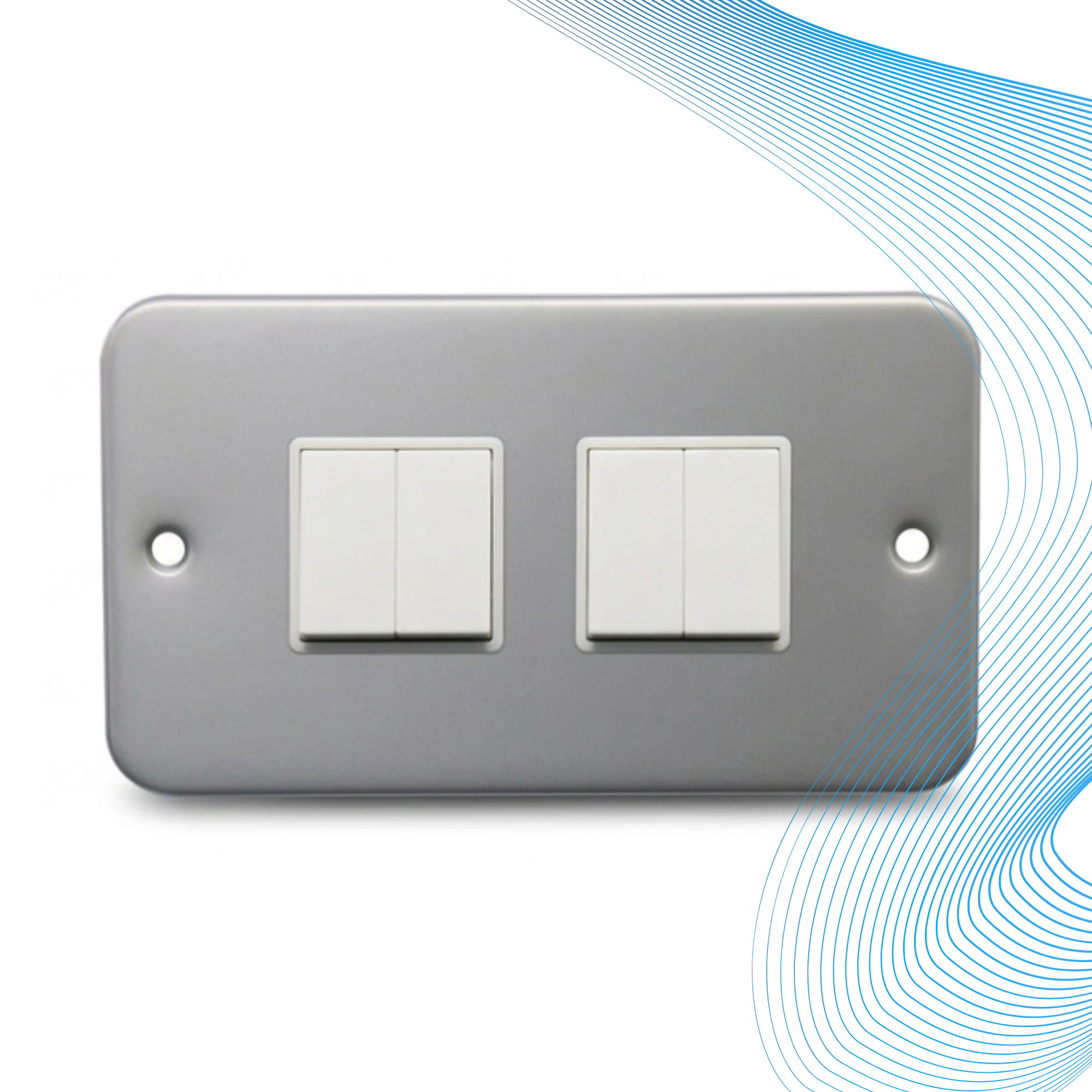

10AX 4 Gang Metal Clad Switch

Heavy-duty 10AX 4 Gang Metal Clad Switch designed for controlling four independent lighting circuits in industrial and commercial environments. Built with a steel metal-clad enclosure, this switch offers excellent protection against impact, dust, and rough usage—ideal for UAE workshops, warehouses, garages, and plant rooms.

The 10AX 4 Gang Metal Clad Switch is a surface-mounted industrial switch that allows control of four separate circuits from one location. Most models support 1-way or 2-way switching, enabling control from multiple points when required.

These switches are widely used in UAE industrial and commercial projects where durability and safety are critical.

Features & Benefits

4 Gang Control – Operates four independent circuits
10AX Rating – Suitable for lighting & inductive loads
Metal Clad Body – Heavy-duty steel construction
Surface Mount Design – Ideal for exposed conduit wiring
Industrial Grade – مقاوم للصدمات والاستخدام الشاق
Long Service Life – Powder-coated corrosion resistance

Specifications

Measurements

Typical UAE Size:

• Approx. 140 × 80 mm plate
• Depth: 40–50 mm back box

Example: Standard metal clad 4 gang switches are around 140 × 80 × 42 mm with integrated back box and conduit knockouts

Materials & Care

Materials

Manufactured using heavy-gauge steel with epoxy or electrophoretic coating, ensuring resistance to corrosion, scratches, and mechanical impact

Care & Handling

• Ensure proper earthing of metal enclosure
• Use in dry indoor areas only
• Tighten wiring terminals properly
• Avoid overloading beyond 10AX
• Install by qualified electrician

Additional Details

• Common in UAE for surface conduit wiring systems
• Ideal for controlling multiple lighting zones
• Supplied with metal back box & 20mm knockouts
• Conforms to BS EN 60669 standards
