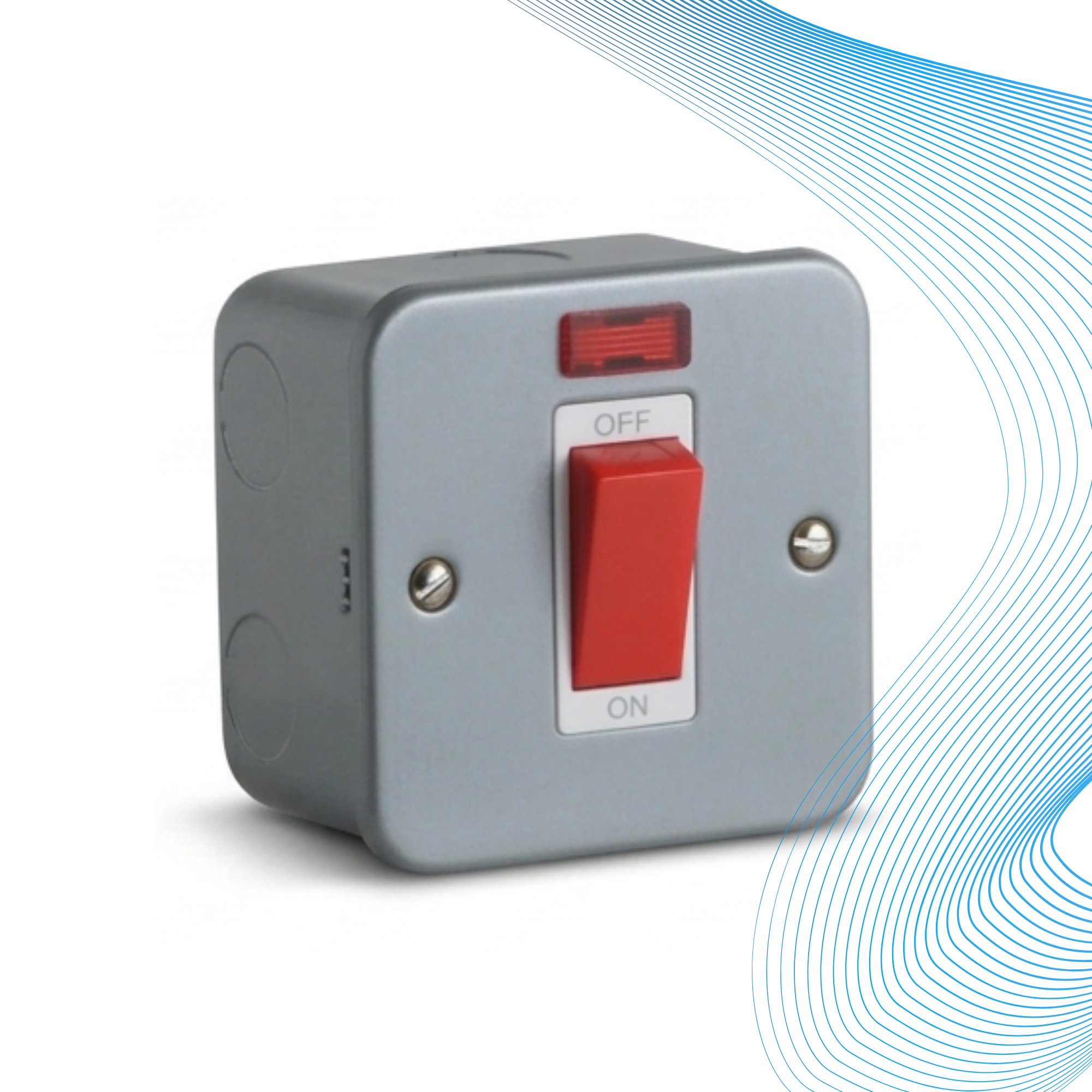

Heavy-duty 45AX 1 Gang Double Pole (DP) Metal Clad Switch with Neon Indicator designed for high-load electrical isolation in industrial, commercial, and residential heavy-duty applications. This switch safely disconnects both live and neutral lines, making it ideal for appliances like cookers, water heaters, and HVAC systems.
Constructed with a robust steel metal-clad enclosure, it provides superior protection against mechanical damage, making it suitable for workshops, plant rooms, and surface-mounted conduit installations.
Product Overview
The 45AX DP Metal Clad Switch with Neon is a high-current isolator switch used for controlling heavy electrical loads. The neon indicator provides clear visibility of power status, improving operational safety in low-light or industrial environments.
Metal clad construction ensures durability and long service life even in rough usage conditions.
Features & Benefits
Double Pole Switching (DP) – Isolates both live & neutral for maximum safety
45AX Heavy Duty Rating – Suitable for high-power appliances
Neon Indicator – Clear ON/OFF status visibility
Metal Clad Body – Strong steel construction for industrial use
Surface Mount Design – Ideal for exposed conduit wiring
High Durability – مقاوم للصدمات والاستخدام الشاق
Long Service Life – Powder-coated corrosion-resistant finish
Specifications
| Attribute | Details |
|---|---|
| Product Type | Metal Clad DP Switch |
| Brands | MK, Schneider, Legrand, Crabtree, BG, Panasonic, RR |
| Current Rating | 45AX |
| Voltage | 220V – 250V AC |
| Gang | 1 Gang |
| Poles | Double Pole (DP) |
| Indicator | Neon |
| Mounting | Surface |
| Material | Steel / Metal |
| IP Rating | IP20 (Indoor Use) |
| Application | High Load Isolation |
| Suitable For | Cookers, Water Heaters, HVAC, Machinery |
Measurements
Typical UAE Standard Size:
- Plate Size: ~ 86 × 86 mm
- Depth: 40–65 mm (with metal back box)
- Some vertical models: up to 146 mm height (cooker switch type)
Materials & Care
Materials
Manufactured using heavy-gauge steel with epoxy powder coating, providing excellent resistance to corrosion, scratches, and mechanical impact.
Care & Handling
- Ensure proper earthing of metal enclosure
- Use in dry indoor environments only
- Tighten terminals securely
- Avoid overloading beyond 45A
- Installation by qualified electrician
Additional Details
- Widely used in UAE for cooker control units and high-load isolation
- Designed for surface conduit wiring systems
- Neon indicator improves safety in industrial areas
- Compatible with 20mm conduit knockouts
Important Note
- Not suitable for outdoor use unless inside weatherproof enclosure
- 45A DP switches are mainly used for dedicated high-load circuits
- For outdoor → use IP55/IP66 weatherproof DP switch
