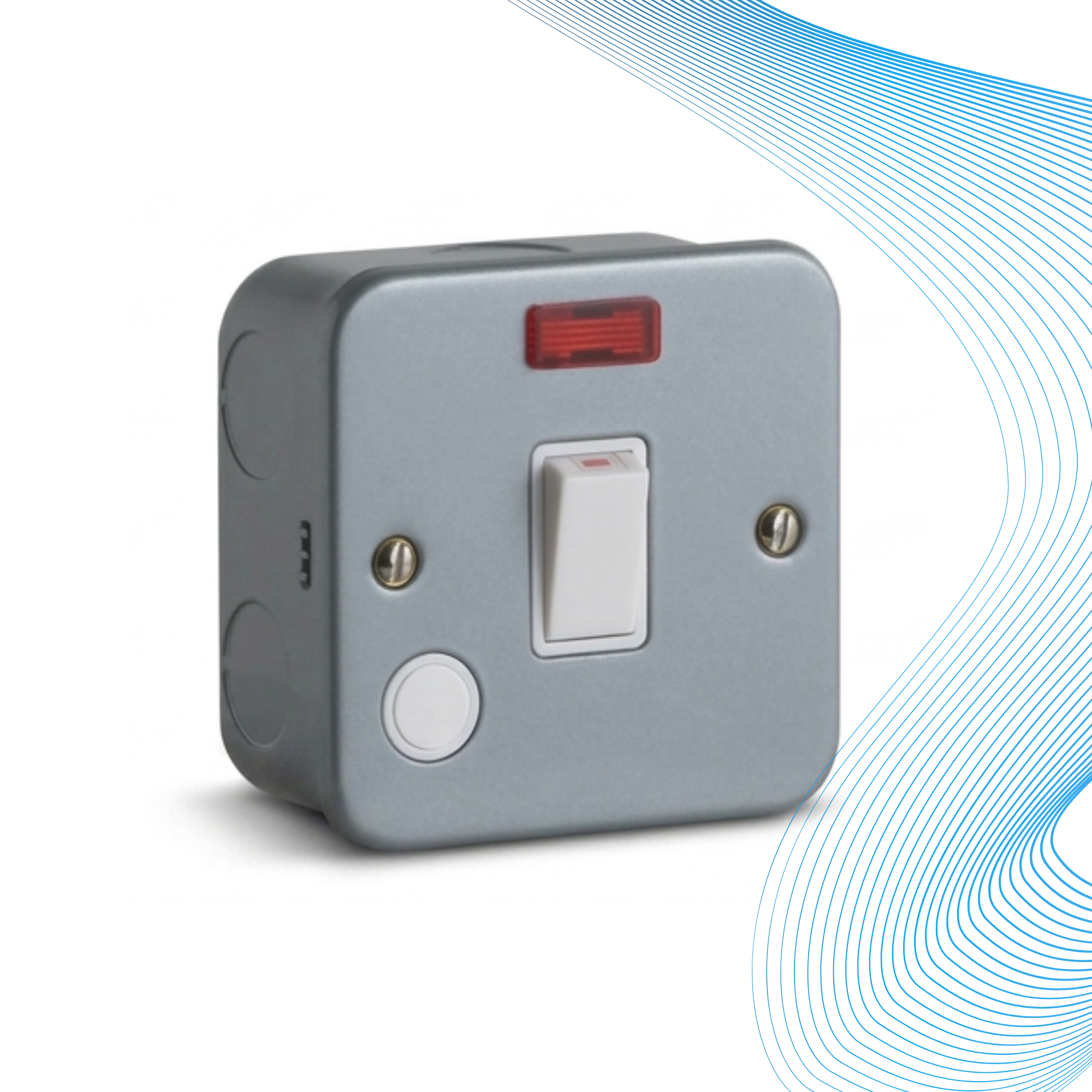

Heavy-duty 20AX 1 Gang Double Pole (DP) Metal Clad Switch with Neon Indicator designed for safe control and isolation of high-load electrical circuits in industrial and commercial environments. This switch disconnects both live and neutral lines, providing enhanced safety for equipment such as water heaters, air conditioners, and machinery.
Built with a robust metal-clad enclosure, it offers excellent protection against impact and rough usage, making it ideal for workshops, factories, and surface-mounted wiring systems.
Product Overview
The 20AX DP Metal Clad Switch with Neon is a surface-mounted heavy-duty switch used for safe isolation of electrical appliances. The built-in neon indicator provides clear visibility of power status (ON/OFF), improving operational safety.
Features & Benefits
Double Pole Switching (DP) – Isolates both live & neutral for maximum safety
20AX Heavy Duty Rating – Suitable for high-load appliances
Neon Indicator Light – Visual ON/OFF indication
Metal Clad Body – Strong impact-resistant steel construction
Surface Mount Design – Ideal for exposed conduit wiring
Industrial Grade – مقاوم للصدمات والاستخدام الشاق
Long Service Life – Durable powder-coated finish
Specifications
| Attribute | Details |
|---|---|
| Product Type | Metal Clad DP Switch |
| Brands | MK, Schneider, Legrand, Crabtree, BG, Panasonic, RR |
| Current Rating | 20AX |
| Voltage | 220V – 250V AC |
| Gang | 1 Gang |
| Poles | Double Pole (DP) |
| Indicator | Neon |
| Mounting | Surface |
| Material | Steel / Metal |
| IP Rating | IP20 (Indoor Use) |
| Application | Power Isolation |
| Suitable For | Water Heaters, AC Units, Machinery |
Measurements
Typical Size (UAE Standard):
- Approx. 86 × 86 mm plate
- Depth: 45–86 mm (with metal back box)
Many models come with integrated back box and 20mm conduit knockouts for easy installation.
Materials & Care
Materials
Manufactured using heavy-gauge steel with powder-coated or epoxy finish, providing high resistance to corrosion and mechanical damage.
Care & Handling
- Ensure proper earthing of metal body
- Use only in dry indoor environments
- Tighten terminals securely
- Avoid overloading beyond 20AX
- Install by qualified electrician
Additional Details
- Widely used in UAE industrial and commercial projects
- Ideal for high-power appliance isolation
- Neon indicator improves visibility in low-light areas
- Designed for surface conduit wiring systems
- Supplied with back box for quick installation
